Creating Profiles

Profiles are created to define the manner in which many aspects of signaling are handled by the system. Profiles can be used to fine-tune the handling of VoIP, TDM, IVR and Tones, and more. To create a profile you must use the Tmedia Web Portal.

To create a profile:

1- Click Profiles in the navigation panel

System profiles contain settings for a large number of call processing options. To learn more about these profile settings, consult the following profile categories:

• VoIP Profile Settings

  • Media Relay

  • SDP

  • SIP

  • RTP and Audio

  • Fax/Modem Relay

• Telephony Services

• Tones and Call Progress Options

• IVR Record

• LNP Options

• Multilevel Precedence and Preemption (MLPP) Options

• Call Transfer Options

Tone definition profiles list the frequencies for each tone that is used in a telephone network. This tone definition can change from country to country, such as the ring tone and busy tone. To learn more about how to configure customized tone definitions, see:

• Tone Definition Profiles

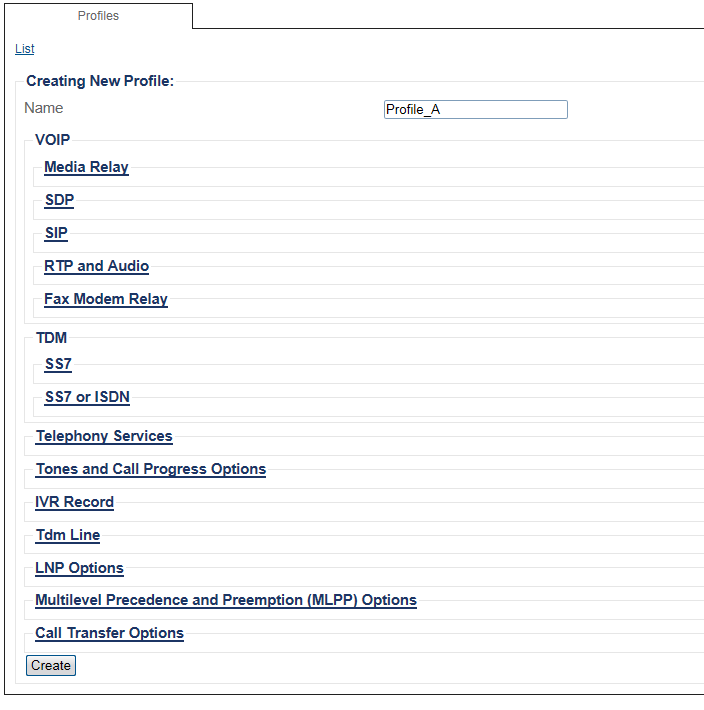

2- Click Create New Profile, to create a new profile

3- Enter a name for the profile

• Click Create

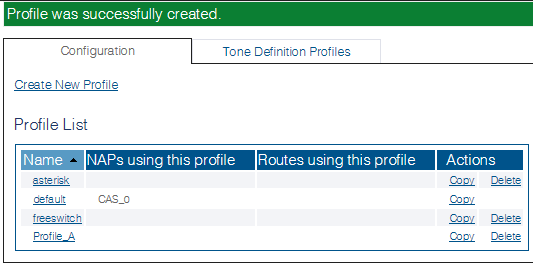

4- Verify that the "Profile was successfully created" message appears, and that the newly added profile appears in the Profiles List below

Profiles parameters that apply to H.248 media only NAP

H.248 Profile Parameters
