Configuring an IP Port Range

A range of IP ports can be configured.

To configure an RTP port range

1. Select IP Interfaces from the navigation panel:

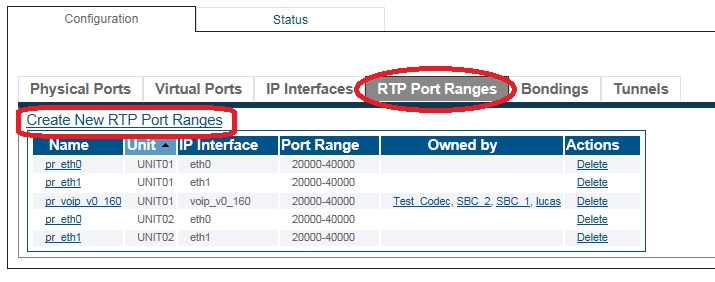

2. Click the RTP Port Ranges tab:

  • Click Create New RTP Port Ranges

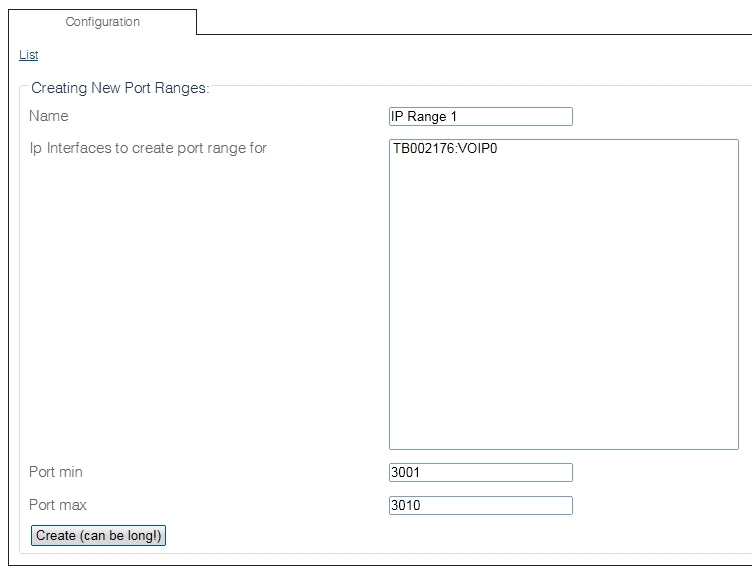

3. Configure the range of ports:

  • Enter a name for the port range

  • Select one or more IP interfaces

  • Enter a minimum port number for the port range

  • Enter a maximum port number for the port range

  • Click Create
