Creating a SIP Registrar

Applies to version(s): v3.0

A SIP registrar represents a SIP endpoint that provide a location service. You must configure SIP Registrar for your system. The first step in doing so is to select your SIP Domain:

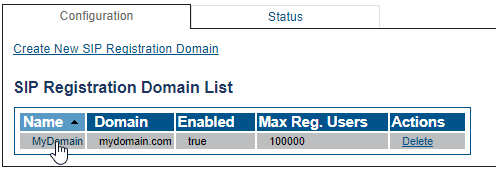

1- Click on your domain in the SIP Domain List

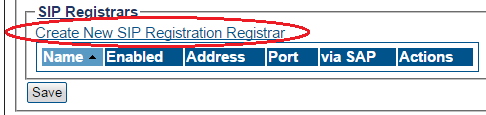

2- Click Create New SIP Registration Registrar

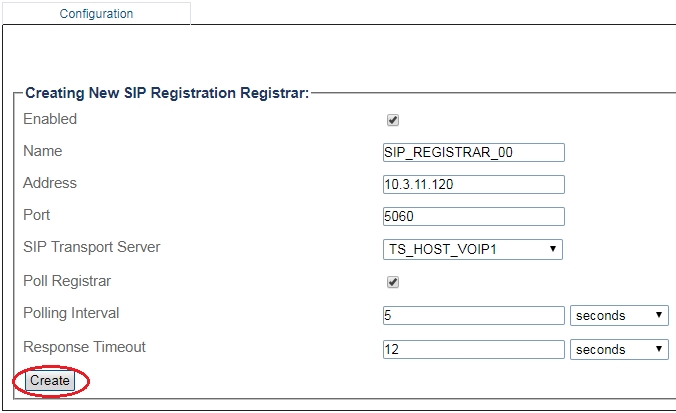

3- Create the new SIP Registration Registrar

• Enter a Name for the SIP Registration Registrar

• Enter an Address to reach the registrar

• Select the registrar destination Port

• Select which local interface will be use to send REGISTER message in SIP Transport Server

• Poll Registrar enabled by default. Sends an OPTIONS message to determine registrar availability.

• Polling Interval in seconds. Time between each OPTIONS sending message.

• Response Timeout in second. Maximum waiting time for a response to a registrar polling.

• Click Create

4- Verify that the Sip registration registrar was successfully created message appears
