Configuring VoIP Interfaces

The IP interface of the VoIP0 and VoIP1 ports can be configured by setting the following:

  • IP Address

  • Netmask

  • Gateway

To configure a VoIP0 or VoIP1 port

1. Select IP Interfaces from the navigation panel:

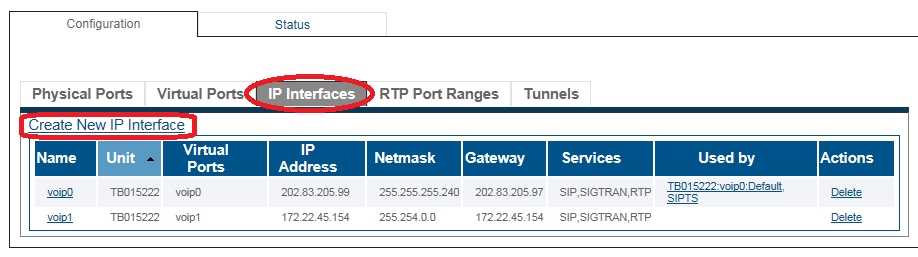

2. Click the IP Interfaces tab.

  • Click Create New IP Interface

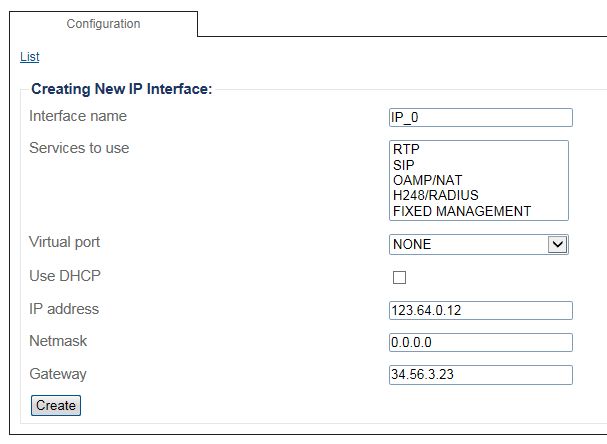

3. Configure the IP port:

  • Enter a name for the interface

  • Select a service to use for the IP inteface

  • Select a Virtual port from which IP packets will exit.

  • Indicate whether or not to use DHCP to automatically get an IP address for this port. (selecting this option removes the need to enter and IP address, Netmask, and Gateway)

  • Enter an IP address

  • Enter a Netmask

  • Enter a gateway address

  • Click Save

Note: IP addresses using different virtual ports must be on different subnets.

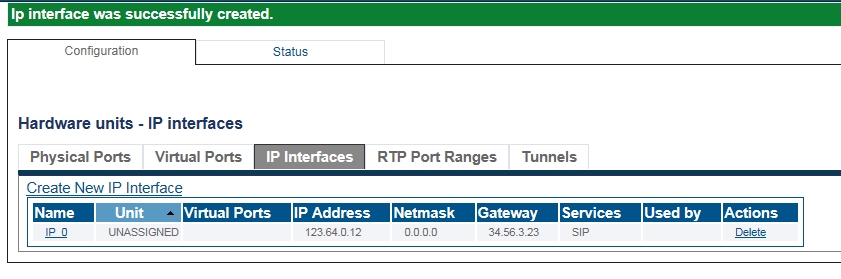

4. The changes are displayed in the IP interfaces information panel:

5. Activate the configuration

  • Select System from the navigation panel.

  • Click Activate

6. You must reboot the adapters only if you are using the vlan from ports 3441 to 3450.

  • Status -> Adapters -> Click on the adapter Serial Number -> Reboot adapter

It will take about 1.5 minutes to restart the unit.
