Creating a SIP Transport Server

After you create a SIP stack, you must must create a new SIP transport server for your SIP configuration.

Note: In order to employ SIP transport servers, the protocol that they will use to transport the SIP signaling traffic must be defined.

To create a SIP Transport server:

1- Click SIP in the navigation panel

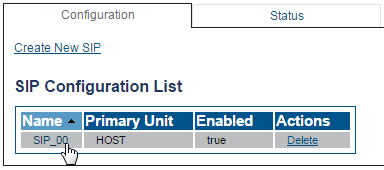

2- Select a SIP stack for which you wish to create a transport server

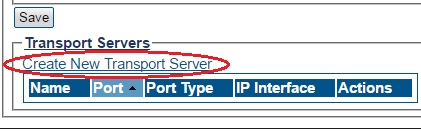

3- Click Create New Transport Server

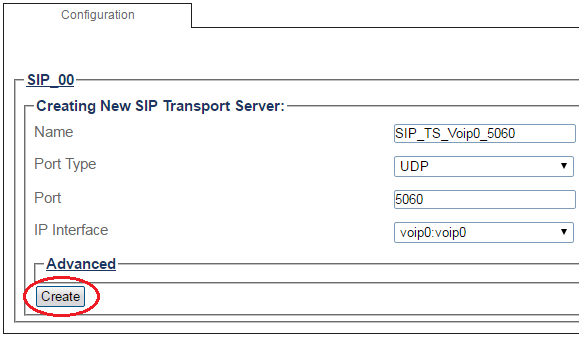

4- Create the new SIP transport server:

• Enter a name for the server

• Select an appropriate port type

• Select an appropriate host IP interface

• Click Create

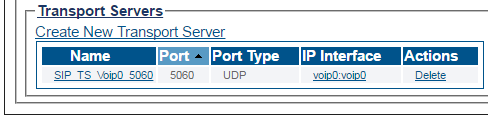

5- Verify that the "SIP transport server was successfully created" message appears, and that the new server is listed in the Transport Servers list

List of Parameters

• Name

• Port Type

• Port

• IP Interface
