Add Digitmap Files to the System
A Digitmap file is created using a comma separated value (CSV) format. Create a file with the desired Direct Inward Dialling (DID) numbers for the system. DO NOT put any spaces between commas and column names. For example:
called,calling,routeset_name
403200,,Calgary_AB
514201,,Montreal_Qc
514202,,Montreal_Qc
514203,,Montreal_Qc
To add Digitmap files to the system:
1- Click FileDB in the navigation panel

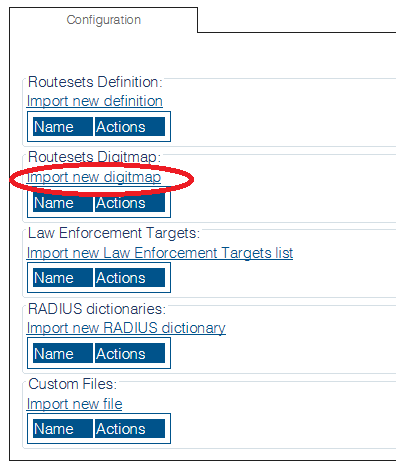

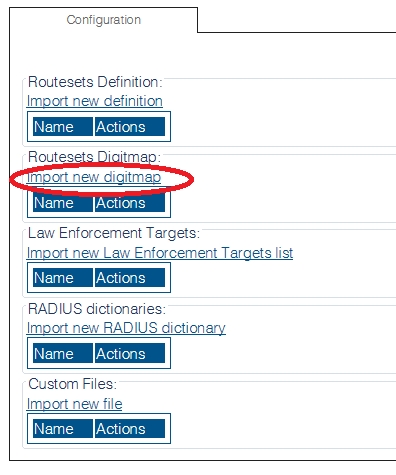

2- Click Import new digitmap

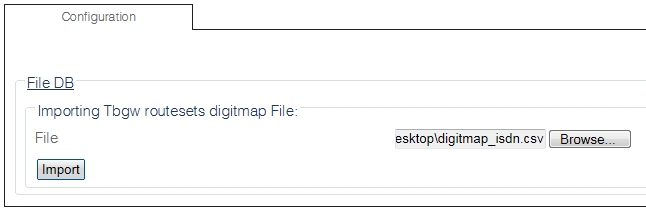

3- Click Browse and select the Digitmap that you wish to import.
Click Import

4- The Digitmap files are displayed in the Routesets digitmap table.

You can use RestfulAPI to add/modify Digitmap Files. Please check the following link Toolpack:Add Edit Digitmap Files RestFul A
