TBReport

This article applies to:	Product	Version
	Tmedia	3.0, 3.2, 3.3
	SBC	3.1, 3.3

You can create a report (Called TBreport or TB report) directly from the web portal. This report captures the following logs from the system:

• Backup of the configuration (mysql DB backup)

• Application logs including:

  • gateway (routing and other high-level functions)

  • logtrace (low-level hardware traces)

  • Stream_server

  • tboam_app (Application and HA manager)

  • tbsnmpagent

  • tbuctwriter

  • toolpack_engine (Signaling processing)

  • toolpack_sys_manager (Hardware configuration)

• tb640debug (low level configuration of the hardware units)

• tbtelnetdump (low level commands on hardware units)

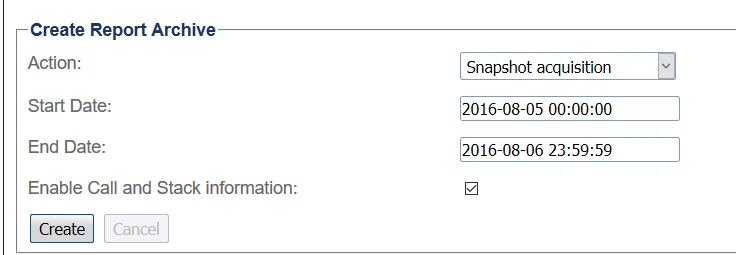

To activate the report:

• Select Report from the navigation menu.

Select the time range and click Create.

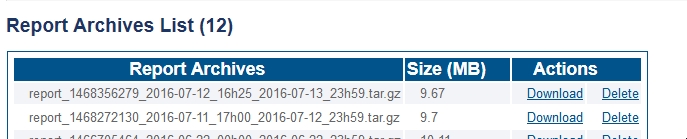

This will create a single file that can be downloaded for analysis and this can be sent to TelcoBridges:

• Uploading large files
