Creating a test call

Test calls can be used to verify many aspects of the system, such as system resources, connection points, and more. Two types of test calls can be run:

• Outgoing

• Simulated incoming call.

To configure a test call:

1- Select Test Call from the navigation panel

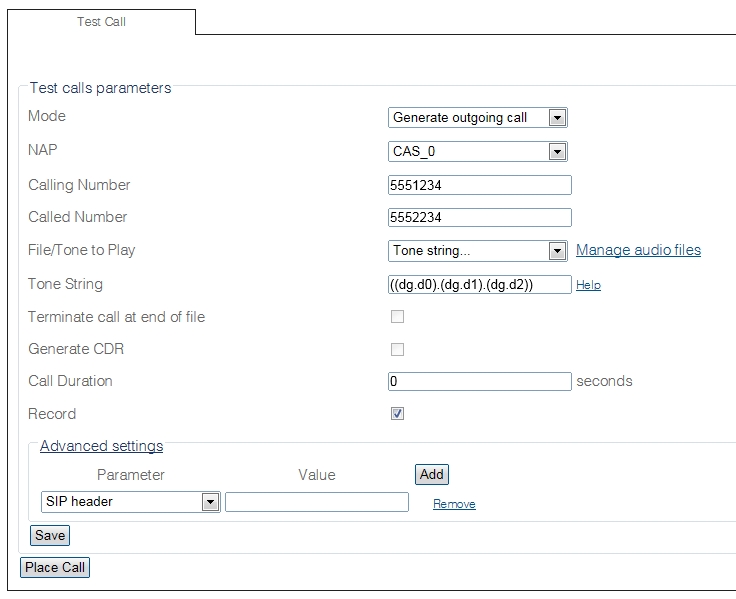

2- Configure the parameters for the test call:

• Select a mode: Simulated incoming or Outgoing

• Enter settings for the call

• Click Place Call

As the call is placed the Current Test Call Status and Current Call Trace regions are updated as the call progresses.

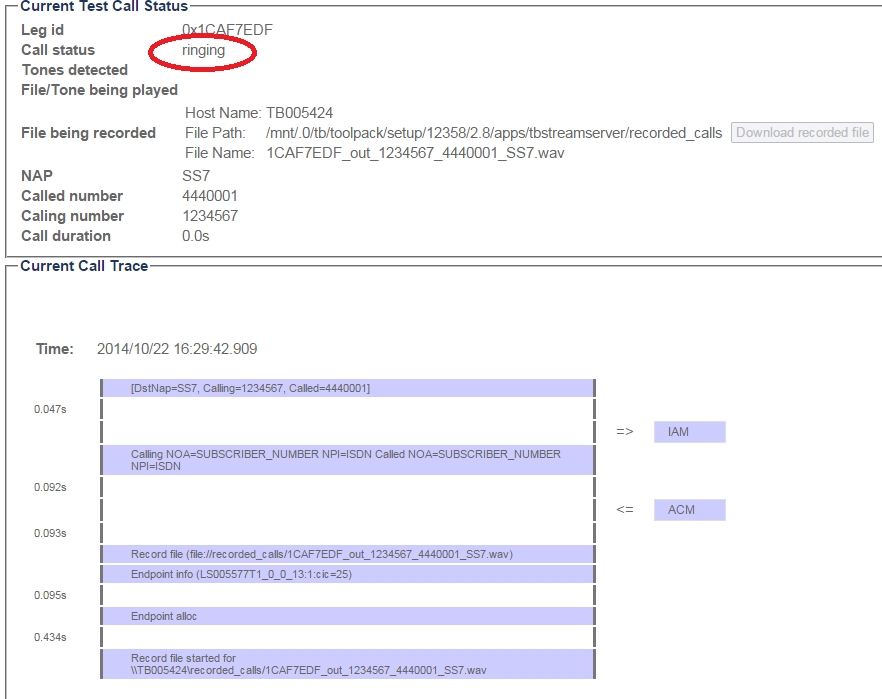

Call Ringing

Call Answered

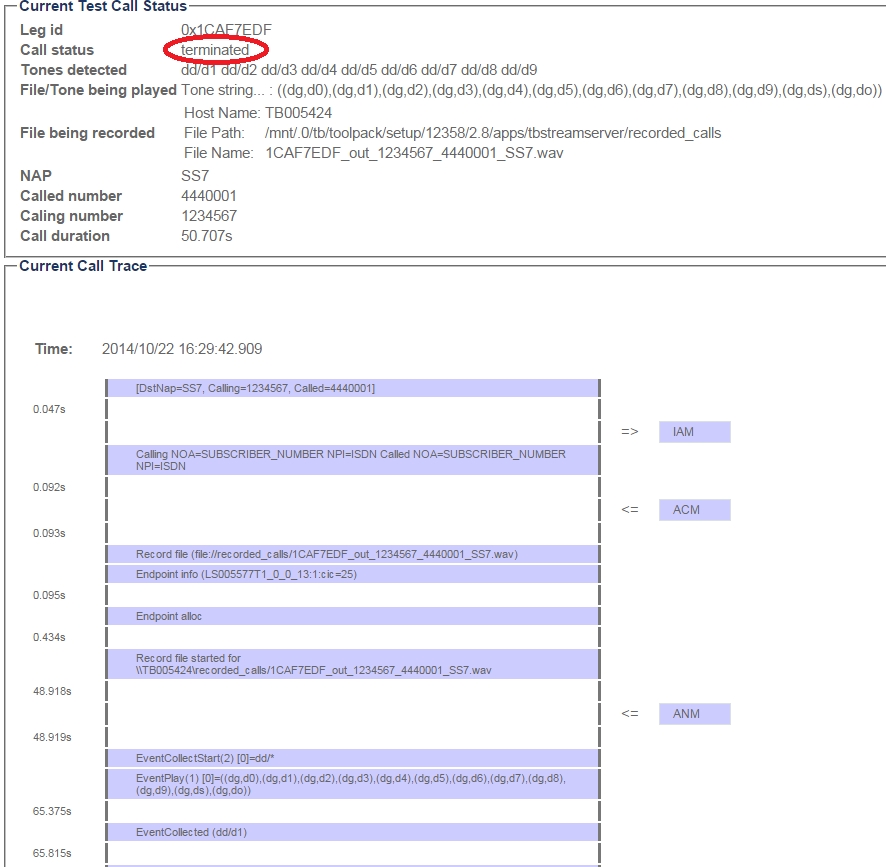

When the call terminates, the call status field is updated

List of Parameters

• Mode

• NAP

• Calling Number

• Called Number

• File/Tone to Play

• Tone String

• Generate CDR

• Call Duration

• Record
