SIP Trunk Configuration Instruction with FusionPBX

Introduction

This article provides you with a step-by-step SIP Trunk Configuration of ProSBC with FusionPBX systems, using the Web Portal configuration tool. Complete the general installation configuration steps, before you begin configuring your specific scenario. In this article the FQDN (fusionpbx.telcobridges.com) is configured in the FusionPBX server. If you do not use an FQDN, you can use the FusionPBX IP addresso. Learn how to configure the SIP Trunk in FusionPBX for ProSBC from FusionPBX Trunk Creation

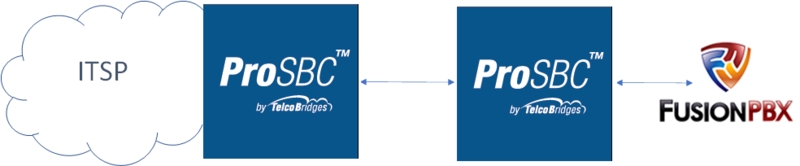

FusionPBX SIP Trunk Example

Configuration Steps

(Step 1) Create IP Network	(Step 2) Create Protocol Stack	(Step 3) Create Call Route
Configuring an IP Virtual Port Configuring a VLAN Configuring IP Interfaces Create an IP port range	Create an IP port range Create a SIP stack Create a SIP transport server Modify profile Allocate a SIP NAP	Create a first call route

NAP Configuration

• See Create SIP NAP

  • At this point, you must create two NAPs: One SIP NAP will be a FusionPBX NAP and the other NAP will be for a SIP trunk provided by ITSP.
