Modifying Tone Definition Profile Settings

'Tone Definition Profiles' list the frequencies for each tone that is used in a telephone network. This can change from one country to the next, such as the sound of a ring or busy tone. You can create a customized tone definition profile by simply copying an existing one and then modifying it.

To create a tone definition profile:

1- Click Profiles in the navigation window.

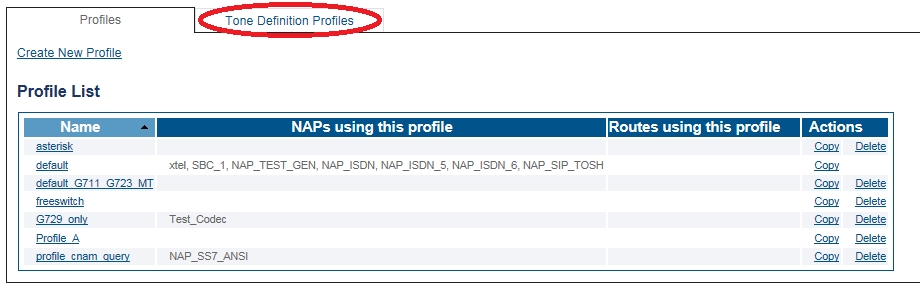

2- Click the Tone Definition Profiles tab.

3- Copy a tone definition profile to use as a baseline for the new profile.

Click Copy

Provide a name for the new file.
Click Copy

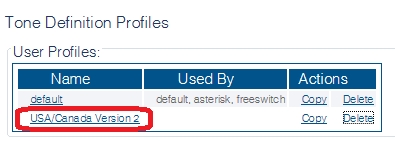

4- Select the newly create profile from the User Profiles list.

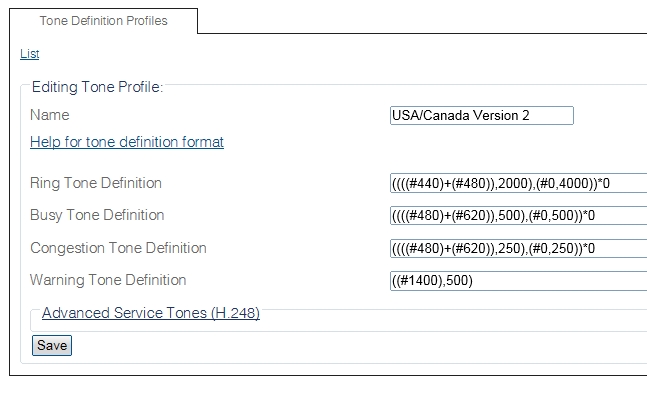

5- Make changes to the profile.

Click Save

6-Return to the Profile page

Click Profiles in the navigation window.

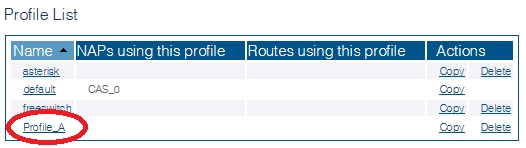

7- Select the profile to which you wish to assign the new tone definition profile.

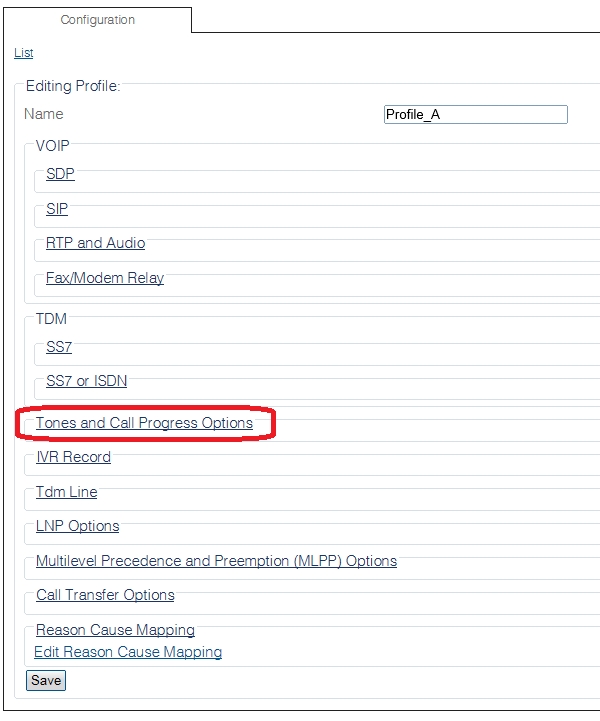

8- Click Tones and Call Progress Options

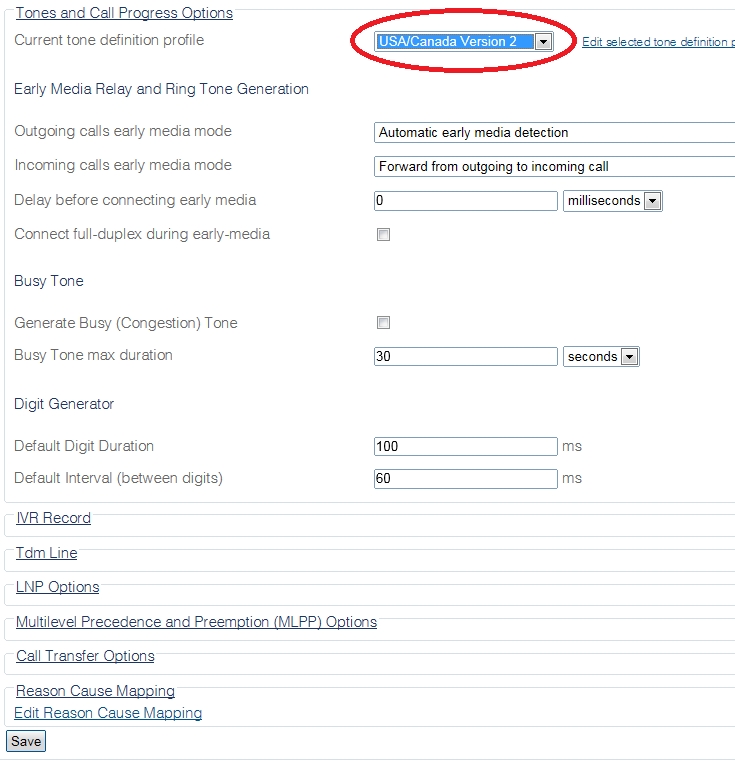

9- Select the newly created tone definition profile.

Click Save

Northbound Interface

Path

/default_tone_definition_profiles/@[toneDefinitionProfile_Name]

Parameters (text)

/default_tone_definition_profiles/@[toneDefinitionProfile_Name]
busy_tone_definition                     = "(((#425),375,-13),(#0,375))*0"
call_waiting_tone_definition             = "((#425),200,-13),(#0,200),((#425),200,-13)"
caller_waiting_tone_definition           = "(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),((((#425),375,-13),(#0,375))*0)"
carrier_answer_tone_definition           = ""
carrier_charging_tone_definition         = ""
carrier_dial_tone_definition             = "((#400),20000)"
comfort_tone_definition                  = ""
confirmation_tone_definition             = "((#425),150,-15),(#0,150),((#425),300,-15)"
dial_tone_definition                     = "(((#400)+(#425)+(#450)),20000,-10)"
faint_tone_definition                    = ""
fast_busy_congestion_tone_definition     = "(((#425),375,-13),(#0,375),((#425),375,-19),(#0,375))*0"
fast_interrupted_tone_definition         = ""
held_tone_definition                     = "(((#620),250),(#0,250),((#620),250),(#0,3250))*0"
high_tone_definition                     = ""
long_distance_indicator_tone_definition  = ""
loud_tone_definition                     = ""
low_tone_definition                      = ""
message_waiting_tone_definition          = "((((#400)+(#425)+(#450)),100,-13),(#0,100))*49"
name                                     = "Australia"
negative_acknowledgement_tone_definition = "(((#425),2500,-13),(#0,500))*0"
offhook_warning_tone_definition          = "((#3200),0,-8)"
pay_tone_definition                      = ""
payphone_recognition_tone_definition     = "(((#1100)+(#1750)),75,-19),(#0,150),(((#750)+(#1450)),75,-19)"
recall_dial_tone_definition              = "(((#400)+(#425)+(#450)),20000,-10)"
ring_tone_definition                     = "((((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000))*0"
ringsplash_tone_definition               = ""
slow_interrupted_tone_definition         = ""
special_conditions_dial_tone_definition  = "((#425),20000,-13)"
special_information_tone_definition      = "(((#950)+(#1400)+(#1800)),330,-8),(#0,330),(((#950)+(#1400)+(#1800)),330,-8),(#0,1000)"
vacant_number_tone_definition            = "(((#425),2500,-13),(#0,500))*0"
warning_tone_definition                  = "((#1400),500,-19)"

Parameters (json)

{
  "busy_tone_definition" : "(((#425),375,-13),(#0,375))*0",
  "call_waiting_tone_definition" : "((#425),200,-13),(#0,200),((#425),200,-13)",
  "caller_waiting_tone_definition" : "(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),(((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000),((((#425),375,-13),(#0,375))*0)",
  "carrier_answer_tone_definition" : "",
  "carrier_charging_tone_definition" : "",
  "carrier_dial_tone_definition" : "((#400),20000)",
  "comfort_tone_definition" : "",
  "confirmation_tone_definition" : "((#425),150,-15),(#0,150),((#425),300,-15)",
  "dial_tone_definition" : "(((#400)+(#425)+(#450)),20000,-10)",
  "faint_tone_definition" : "",
  "fast_busy_congestion_tone_definition" : "(((#425),375,-13),(#0,375),((#425),375,-19),(#0,375))*0",
  "fast_interrupted_tone_definition" : "",
  "held_tone_definition" : "(((#620),250),(#0,250),((#620),250),(#0,3250))*0",
  "high_tone_definition" : "",
  "long_distance_indicator_tone_definition" : "",
  "loud_tone_definition" : "",
  "low_tone_definition" : "",
  "message_waiting_tone_definition" : "((((#400)+(#425)+(#450)),100,-13),(#0,100))*49",
  "name" : "Australia",
  "negative_acknowledgement_tone_definition" : "(((#425),2500,-13),(#0,500))*0",
  "offhook_warning_tone_definition" : "((#3200),0,-8)",
  "pay_tone_definition" : "",
  "payphone_recognition_tone_definition" : "(((#1100)+(#1750)),75,-19),(#0,150),(((#750)+(#1450)),75,-19)",
  "recall_dial_tone_definition" : "(((#400)+(#425)+(#450)),20000,-10)",
  "ring_tone_definition" : "((((#400)+(#425)+(#450)),400,-13),(#0,200),(((#400)+(#425)+(#450)),400,-13),(#0,2000))*0",
  "ringsplash_tone_definition" : "",
  "slow_interrupted_tone_definition" : "",
  "special_conditions_dial_tone_definition" : "((#425),20000,-13)",
  "special_information_tone_definition" : "(((#950)+(#1400)+(#1800)),330,-8),(#0,330),(((#950)+(#1400)+(#1800)),330,-8),(#0,1000)",
  "vacant_number_tone_definition" : "(((#425),2500,-13),(#0,500))*0",
  "warning_tone_definition" : "((#1400),500,-19)"
}
