Modifying Call Transfer Profile Settings

To modify Call Transfer Options settings:

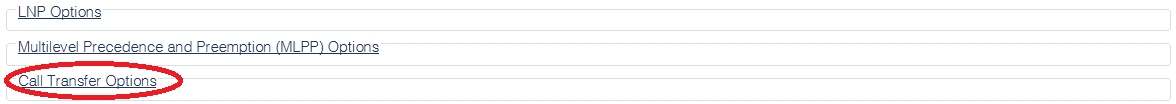

1- Click Call Transfer Options in the Editing Profile window, to display the customizable options.

2- Modify settings as required.

• Click Save

Northbound Interface

Path

/configurations/@[configuration_name]/profiles/@[profile_name]

Parameters (text)

/configurations/@[configuration_name]/profiles/@[profile_name]
name                            = "@[profile_name]"

/configurations/@[configuration_name]/profiles/@[profile_name]/call_transfer_options
call_transfer_mode               = "Relay"
call_transfer_timeout            = "1 minute"
terminate_transferor_immediately = false

Parameters (json)

{
"call_transfer_options" : {
    "call_transfer_mode" : "Relay",
    "call_transfer_timeout" : "1 minute",
    "terminate_transferor_immediately" : false
  }
}

List of Parameters

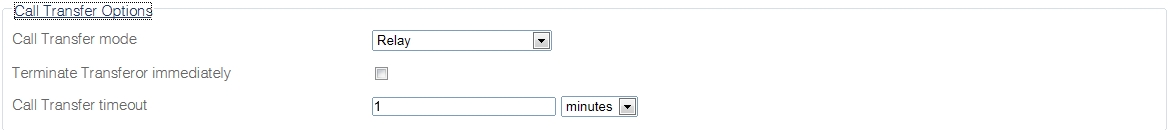

Call Transfer Options

• Call Transfer Options: Call Transfer Mode

• Call Transfer Options: Terminate Transferor Immediately

• Call Transfer Options: Call Transfer Timeout
