Modifying RTP and Audio Settings

To configure RTP and Audio settings, do the following:

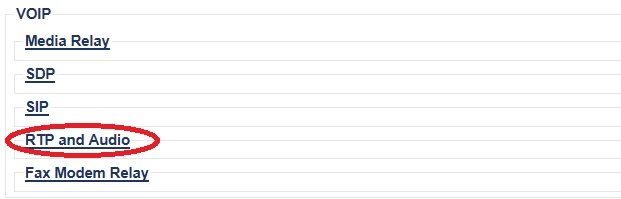

1- Click RTP and Audio in the Editing Profile window, to display the customizable options.

2- Modify settings as required.

• Click Save

List of Parameters

Drop Call Thresholds

• No Rx Packets

Codec

• G726 AAL2 format

Jitter Buffer

• Jitter Buffer: Initial Depth

• Jitter Buffer: Minimum Depth

• Jitter Buffer: Maximum Depth

• Jitter Buffer: Smooth deletion

TDM Volume Control

• TX Gain Level

• RX Gain Level

Echo Cancellation

• Echo Cancellation: Enabled

• Echo Cancellation: Gain Power Level

• Echo Cancellation: Enable DC Removal Filter

• Echo Cancellation: Enable Coefficient Update

• Echo Cancellation: Non Linear Processor Tune Option

RTCP

• RTCP: Enabled

• RTCP: Transmission Interval

• RTCP: Use XRTCP

• RTCP: SDES-CNAME

Voice Activity Detection

• Voice Activity Detection: Noise floor level

Packet Network

• Packet Network: Type of Service

• Packet Network: SSRC randomization

• Packet Network: Packet Loss Concealment

Clear Channel

• Packet Duration
