Modifying Multilevel Precedence and Preemption (MLPP) Options

To modify Multilevel Precedence and Preemption (MLPP) Options:

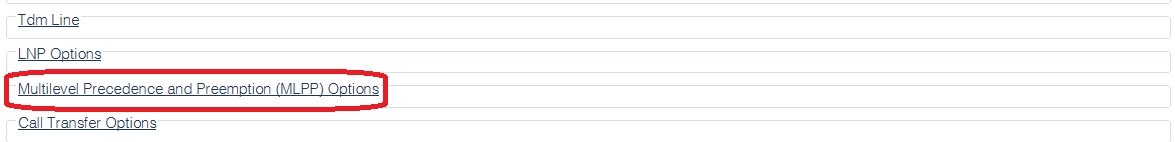

1- Click Multilevel Precedence and Preemption (MLPP) Options in the Editing Profile window, to display the customizable options.

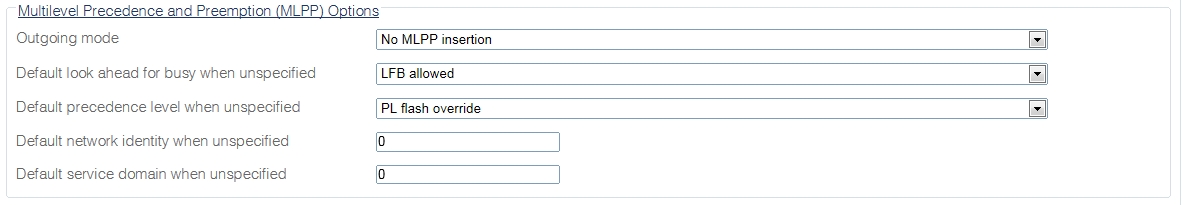

2- Modify settings as required.

• Click Save

Northbound Interface

Path

/configurations/@[configuration_name]/profiles/@[profile_name]

Parameters (text)

/configurations/@[configuration_name]/profiles/@[profile_name]
name                            = "@[profile_name]"

/configurations/@[configuration_name]/profiles/@[profile_name]/mlpp_options
look_ahead_for_busy = "LFB allowed"
network_identity    = 0
outgoing_mode       = "No MLPP insertion"
precedence_level    = "PL flash override"
service_domain      = 0

Parameters (json)

{
"mlpp_options" : {
    "look_ahead_for_busy" : "LFB allowed",
    "network_identity" : 0,
    "outgoing_mode" : "No MLPP insertion",
    "precedence_level" : "PL flash override",
    "service_domain" : 0
  }
}

List of Parameters

MLPP Options

• MLPP: Outgoing Mode

• MLPP: Default look ahead for busy when unspecified

• MLPP: Default precedence level when unspecified

• MLPP: Default network identity when unspecified

• MLPP: Default service domain when unspecified
