Remote Workers Configuration Instruction with FusionPBX

Introduction

Remote Workers Configuration Instruction with FusionPBX Example Configuration provides you with a step by step Remote workers Configuration of ProSBC with FusionPBX systems, using the Web Portal configuration tool. Complete general installation configuration steps, before you begin configuring your specific scenario. In this guide FQDN (sip.telcobridges.com) configured in the FusionPBX server and registration forwarding used in ProSBC.

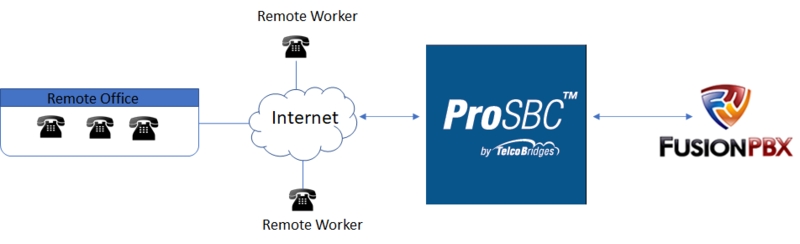

FusionPBX Remote Workers Example

Configuration Steps

(Step 1) Create IP Network	(Step 2) Create Protocol Stack	(Step 3) Create Call Route
Configuring an IP Virtual Port Configuring a VLAN Configuring IP Interfaces Create an IP port range	Create an IP port range Create a SIP stack Create a SIP transport server Modify profile Allocate a SIP NAP Allocate an open SIP NAP	Create a first call route

NAP Configuration

• See Create SIP NAP and Create Open NAP

  • Here, SIP NAP will be FusionPBX NAP and Open NAP will be from Remote Clients

SIP Domain Configuration

• See Create a SIP domain

  • Here domain name will be FQDN of the FusionPBX server. In our example, it will be sip.telcobridges.com
