Configuring IP Interfaces

The IP interface of the LAN/WAN ports can be configured by setting the following:

To configure a LAN/WAN IP interface

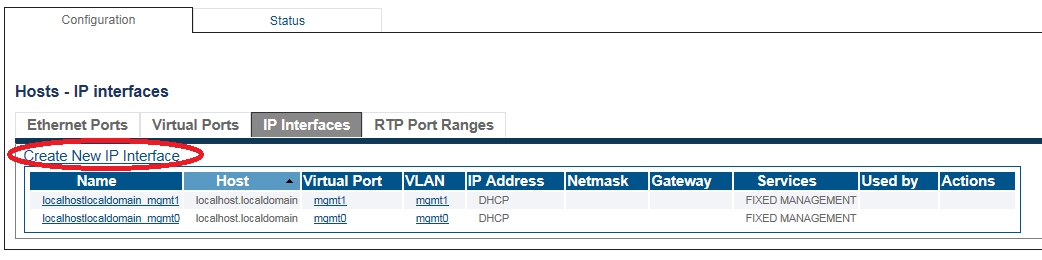

1. Select IP Interfaces from the navigation panel:

2. Click the IP Interfaces tab.

  • Click Create New IP Interface

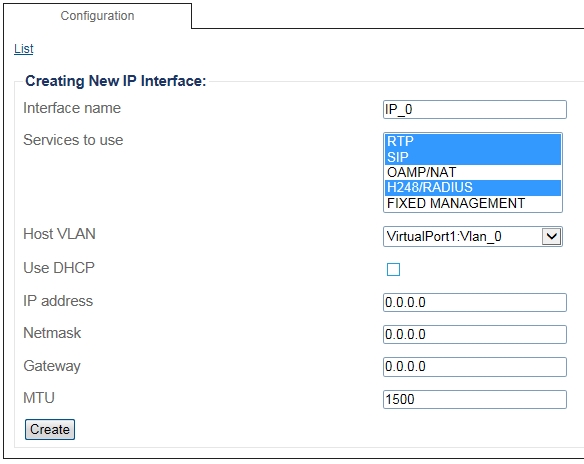

3. Configure the IP interface:

  • Enter a name for the interface

  • Select 1 or more services to use for the IP interface (RTP, SIP and H.248/RADIUS can be selected simultaneously).

  • Select the Host VLAN from which IP packets will exit.

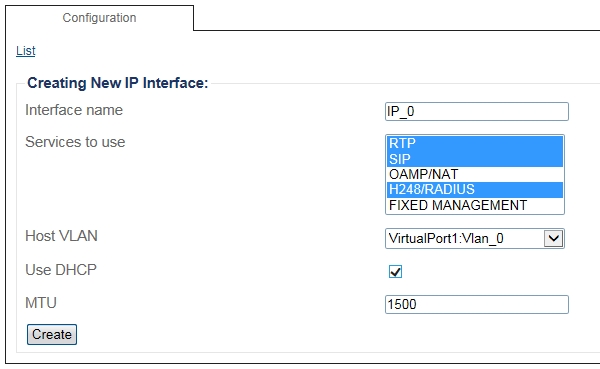

  • Indicate whether or not to use DHCP to automatically get an IP address for this port. (selecting this option removes the need to enter and IP address, Netmask, and Gateway)

  • Enter an IP address

  • Enter a Netmask

  • Enter a gateway address

  • Click Save

OR

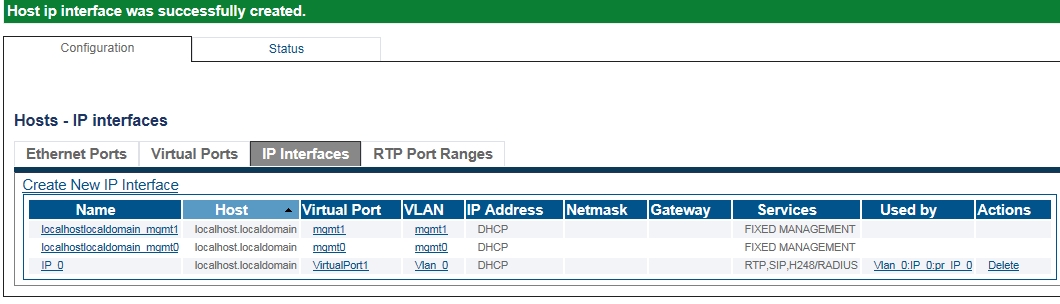

4. The changes are displayed in the IP interfaces information panel:

5. Activate the configuration

  • Select System from the navigation panel.

  • Click Activate

List of Parameters
