NAP Profiles

Profiles are created to define the manner in which many aspects of signaling are handled by the system. Profiles can be used to fine-tune the handling of VoIP, TDM, IVR and Tones, and more. To create a profile you must use the Tmedia Web Portal.

To create a profile:

1- Click Profiles in the navigation panel

System profiles contain settings for a large number of call processing options. To learn more about these profile settings, consult the following profile categories:

• VoIP Profile Settings

  • Media Relay

  • SDP

  • SIP

  • RTP and Audio

  • Fax/Modem Relay

• Telephony Services

• Tones and Call Progress Options

• IVR Record

• LNP Options

• Multilevel Precedence and Preemption (MLPP) Options

• Call Transfer Options

Tone definition profiles list the frequencies for each tone that is used in a telephone network. This tone definition can change from country to country, such as the ring tone and busy tone. To learn more about how to configure customized tone definitions, see:

• Tone Definition Profiles

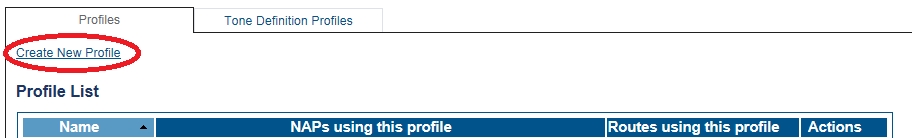

2- Click Create New Profile, to create a new profile

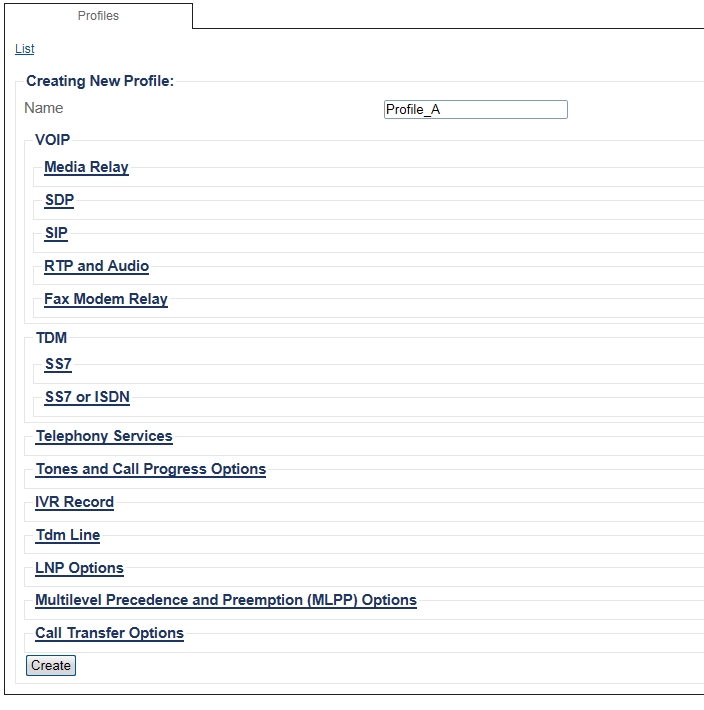

3- Enter a name for the profile

• Click Create

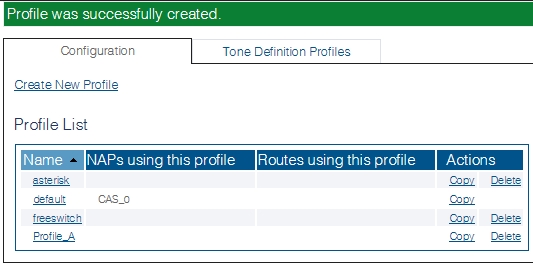

4- Verify that the "Profile was successfully created" message appears, and that the newly added profile appears in the Profiles List below
