Modifying Media Relay Profile Settings

To configure the Media Relay settings, do the following:

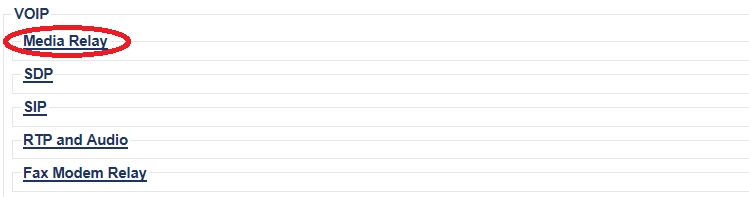

1- Click Media Relay in the Editing Profile window, to display the customizable options.

2- Modify settings as required.

• Click Save

Northbound Interface

Path

/configurations/@[configuration_name]/profiles/@[profile_name]/voip/media_relay_options

Parameters (text)

/configurations/@[configuration_name]/profiles/@[profile_name]/voip/media_relay_options
allow_audio_transcoding       = true
allow_low_delay_media_relay   = true
codecs_selection_mode         = "Compatible codecs only"

Parameters (json)

    "media_relay_options" : {
      "allow_audio_transcoding" : true,
      "allow_low_delay_media_relay" : true,
      "codecs_selection_mode" : "Compatible codecs only",
      "low_delay_media_relay_options" : {
        "allow_other_codecs" : false
      }
    }

List of Parameters

• Codecs selection mode

• Allow audio transcoding

• Allow low-delay media relay

• Use RTP no-anchoring

• Allow other codecs

• RTP security mode
