Call Detail Records (CDR)

To enable CDR:

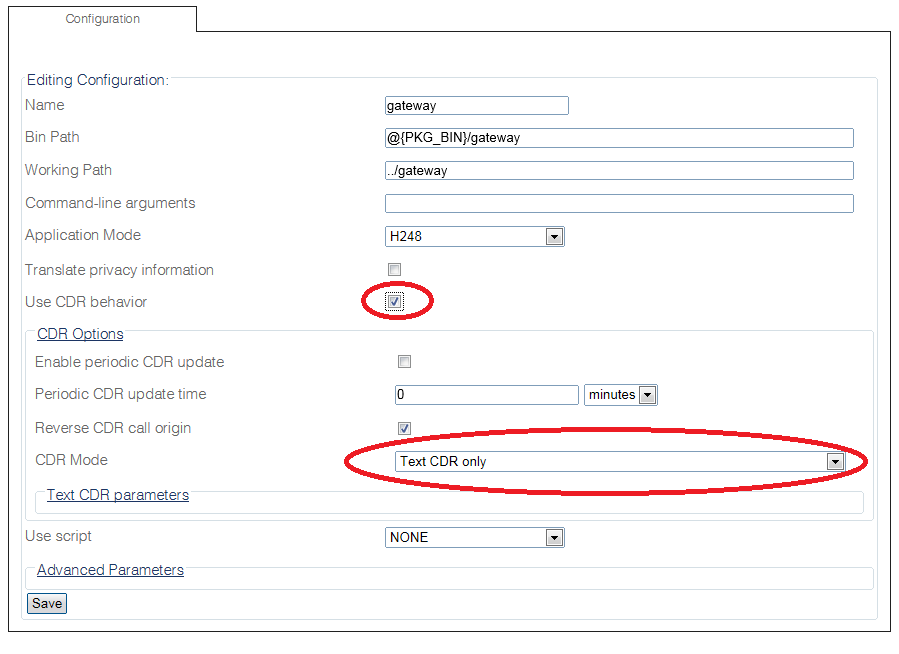

1- Select Gateway from the navigation panel.

2- To enable CDR, select Use CDR behavior.

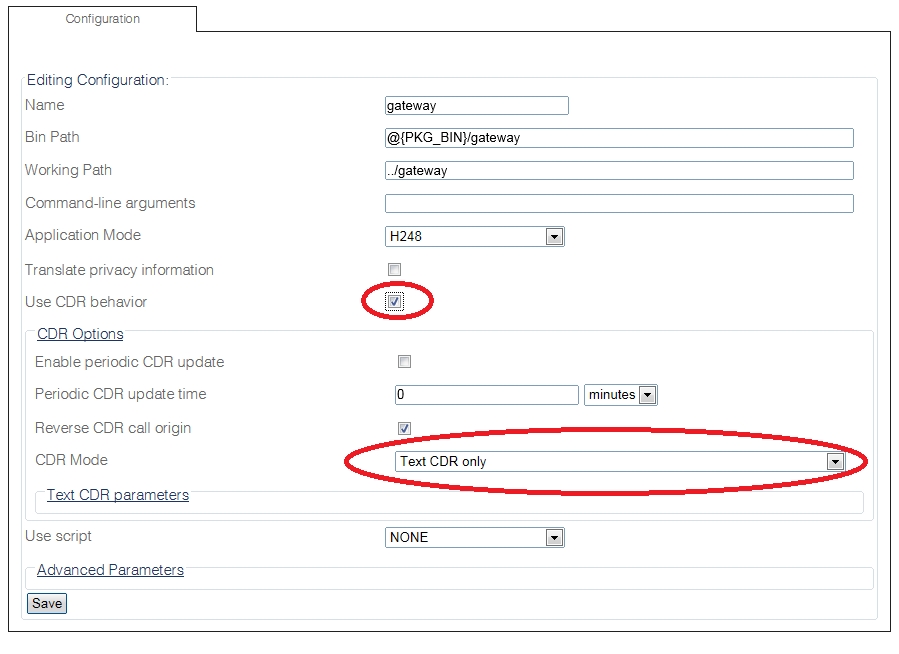

3- Configure the CDR behavior in the CDR Options section:

• Enable periodic CDR update will add one entry in the CDR per Periodic CDR update time, in minutes.

• Select one of the Text CDR mode from the CDR Mode :

  • Text CDR only: Will store the CDRs in a flat file.

  • RADIUS CDR only: Will send the CDR to an external RADIUS Server.

  • Text and RADIUS CDR: Will store the CDRs in a flat file and send the CDR to an external RADIUS Server.

  • RADIUS CDR with Text CDR Fallback: Will send the CDR to an external RADIUS Server and if the RADIUS server cannot handle the load of CDRs, they will be stored in a flat file.

• Click Save to save your changes.

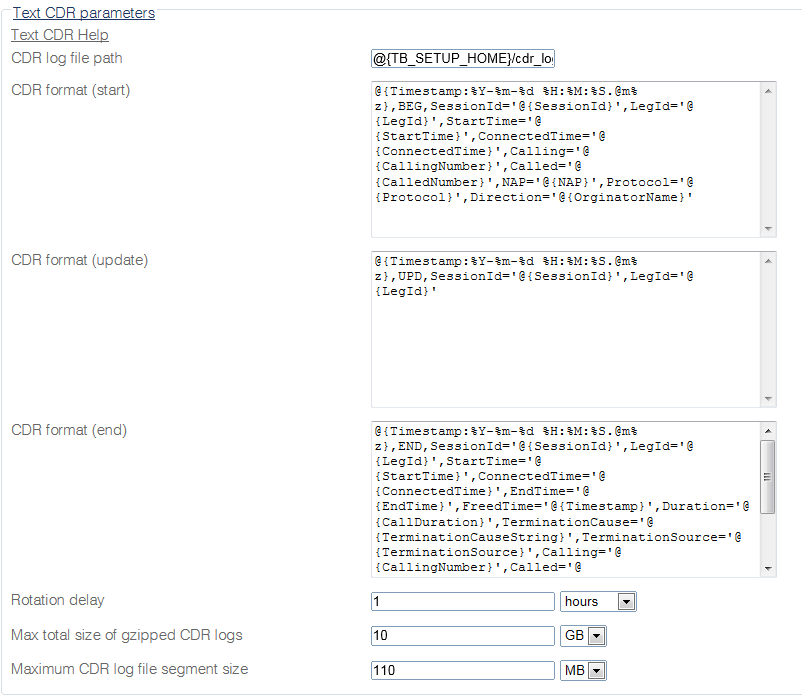

3- Expand the Text CDR parameters section

• Configure the Text CDR parameters as required. Refer to the description of parameters described below.
