Configuring Lawful Interception

Note: This procedure assumes that a Law Enforcement Agencies NAP has been created. Each Law Enforcement Agency requires that a NAP be configured to send the intercepted call legs. NAPs can be dedicated for lawful interceptions, or not.

Multiple Law Enforcement Agencies can be created in Toolpack. They operate independently of each other. They can intercept the same calls, as well as different ones.

To configure a Law Enforcement Agency:

1- Select Lawful Interception from the navigation panel

2- Enter an Indentifier for the Network Operator.

• Click Save

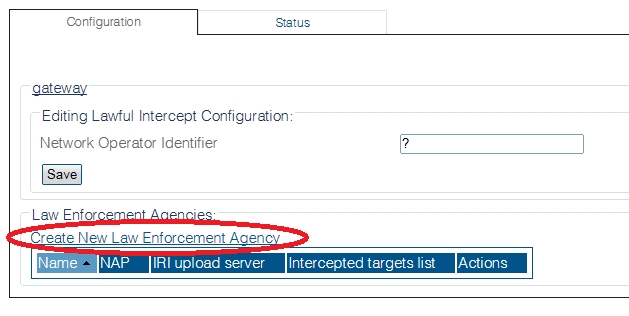

3- Create a Lawful Agency

• Click Create New Lawful Agency

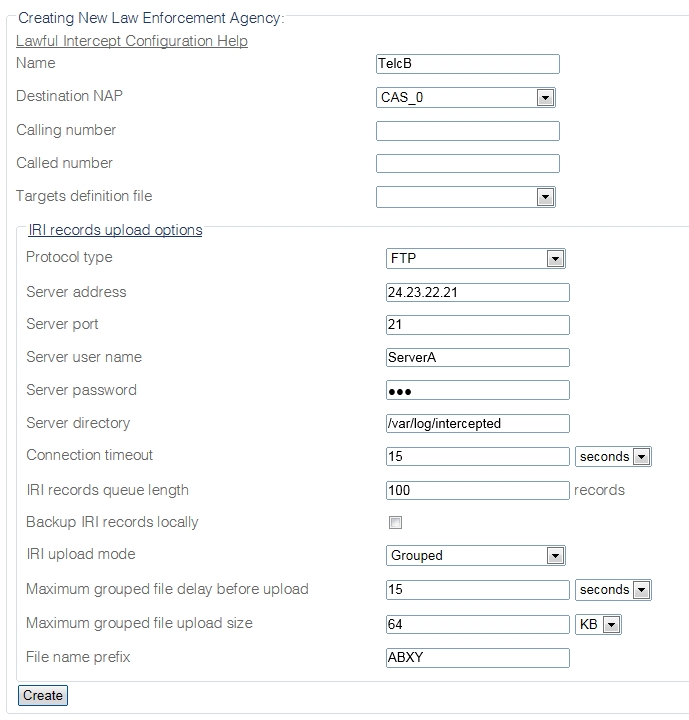

4- Configure the Lawful Agency parameters:

• Click Save.

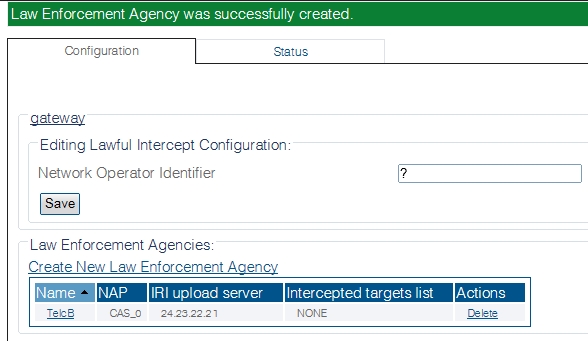

5- Verify that the Law Enforcement Agent was successfully created message is displayed.

List of Parameters

• Name

• FTP Server Address

• FTP User Name

• FTP Server Password

• FTP Server Directory

• IRI Records Queue Length

• IRI Upload Mode

• Maximum grouped file delay before upload

• Maximum grouped file upload size

• File name prefix
