Configure Fax VBD

To enable VBD:

1. Select Profiles from the navigation menu.

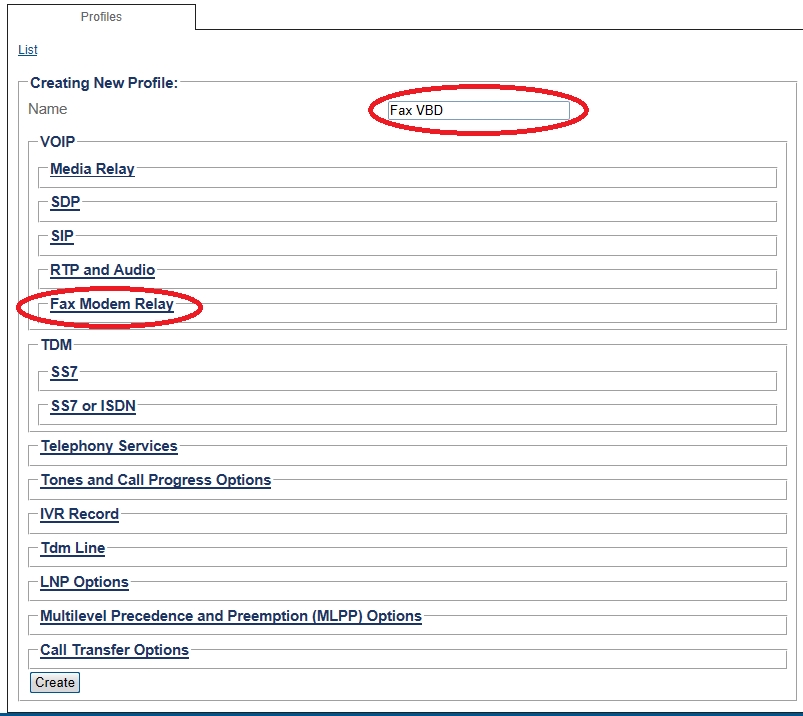

2. Click Create New Profile

3. Enter a name for the Fax Profile.

• Click Fax/Modem Relay to expand the view.

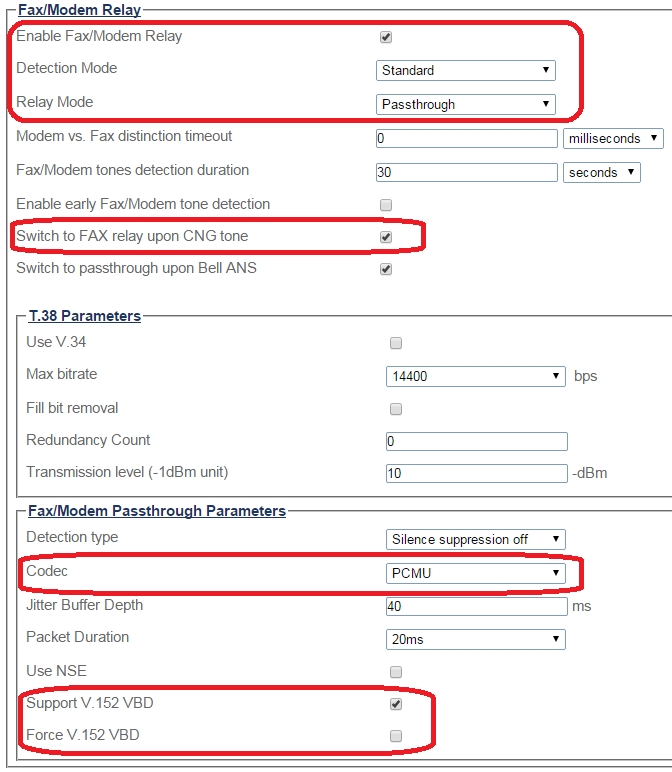

4. Configure the settings:

• Set Enable Fax/Modem Relay to enabled.

• Set Detection Mode to Standard.

• Set Relay Mode to Passthrough.

• Set Switch to FAX relay upon CNG tone to checked.

• Select a codec. For example silence suppression

You can set one or both of the following two parameters:

• Support V.152 VBD

• Force V.152 VBD

5. Verify that the Profile was successfully created message is displayed.
