SNMP traps are automatically generated on TMedia platforms by the NetSNMP installation, which monitors hardware and software interfaces registered with the ifTable of the IF-MIB module. When the operation status of an interface changes, a trap is generated by NetSNMP, and sent to a destination address for processing. In order for traps to be generated, an SNMP trap destination must be defined in the Web Portal. To create an SNMP trap destination, do the following: NOTE: The procedure will vary, depending on whether you create a trap destination for SNMPv1/v2, or for SNMPv3.
1-Click Services in the navigation panel.
2-Select the SNMP tab.

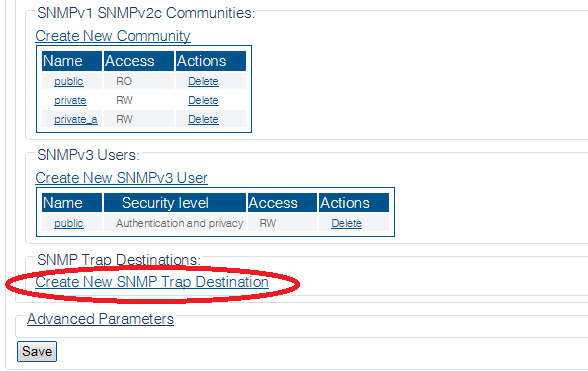

3-Create New SNMP Trap Destination

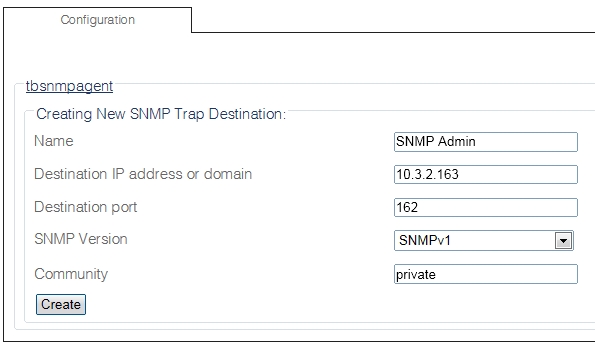

Creating an SNMPv1/v2 Trap Destination
In the trap destination configuration panel, set the following parameters if you are creating a trap destination for SNMPv1/v2:
Enter a name to identify the trap destination
Enter a destination IP Address for sending generated traps
Enter a destination port number, on which to send generated traps (standard default value is 162)
Select version 1 or 2 from SNMP Version
Enter the name of the SNMPv1/v2 community to use (configured previously)
Click Create

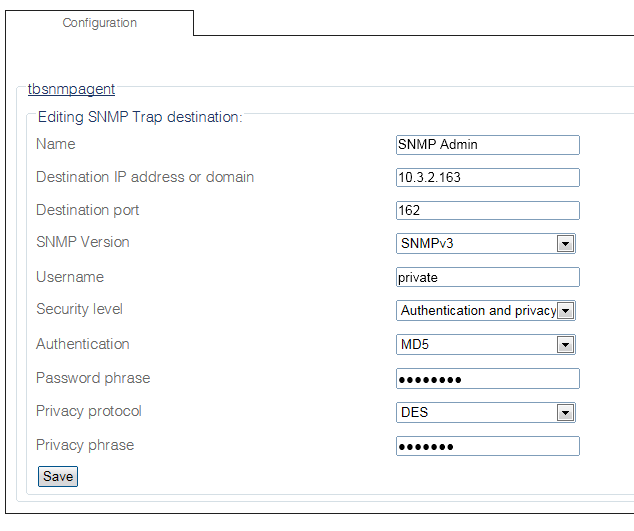

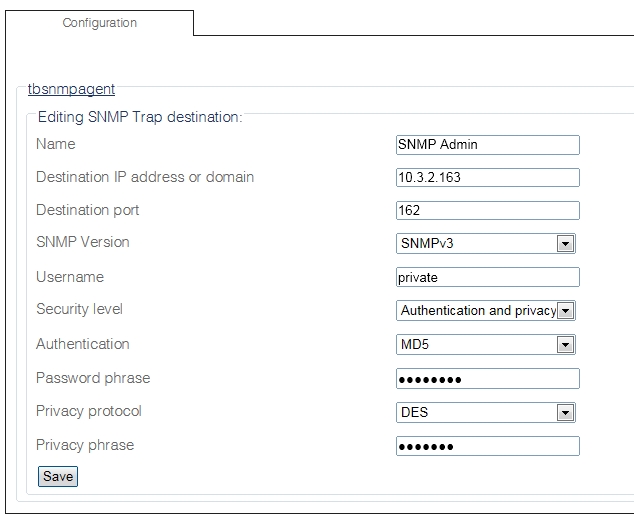

Creating an SNMPv3 Trap Destination
In the trap destination configuration panel, set the following parameters if you are creating a trap destination for SNMPv3:
Enter a name to identify the trap destination
Enter a destination IP Address for sending generated traps
Enter a destination port number, on which to send generated traps (standard default value is 162)
Select version 3 from SNMP Version
Enter the name of the SNMPv3 user to use (configured previously)
Select a security level for the user from the security level drop-down box
Select an appropriate authentication algorithm for the user from the authentication drop-down box
Enter the appropriate authentication pass phrase for the user
Select an appropriate privacy standard for the user from the privacy protocol drop-down box
Enter the appropriate authentication privacy phrase for the user
Click Create
Verify that the "SNMP Trap Destination was Successfully Created" message is displayed and that the new SNMP trap destination appears in the SNMP Trap Destinations list
