Creating a SIP Register Filtering Rule

To configure a SIP Register Filtering Rule (Inbound or Outbound), do the following:

1- Click SIP Register Filtering in the navigation panel

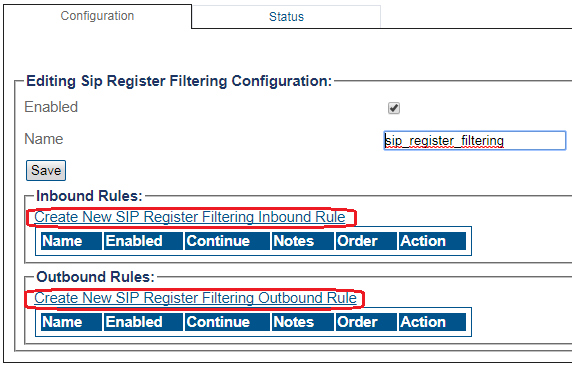

2- Click Create New SIP Register Filtering Inbound Rule or Create New SIP Register Filtering Outbound Rule

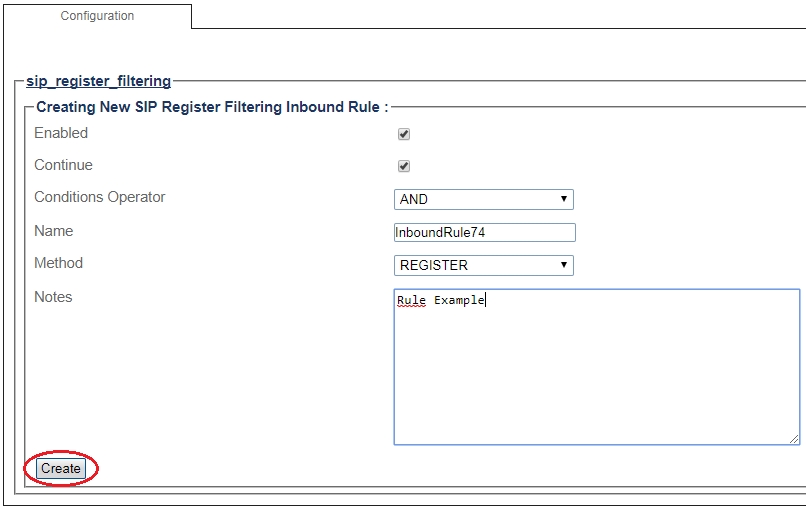

3- Create the new SIP Register Filtering Rule:

  • Select Enabled to make this rule active.

  • Select Continue to indicate whether to check next rule if current rule conditions match and action isn't final (i.e. not REJECT, nor DROP action).

  • Select Conditions Operator between rule conditions. If all conditions must match then select AND operator. If a single condition match is required then select OR operator.

  • Enter a Name for this SIP Register Filtering Rule.

  • Optionally, it is possible to enter a rule description. The description is ignored by the system.

  • Click Create

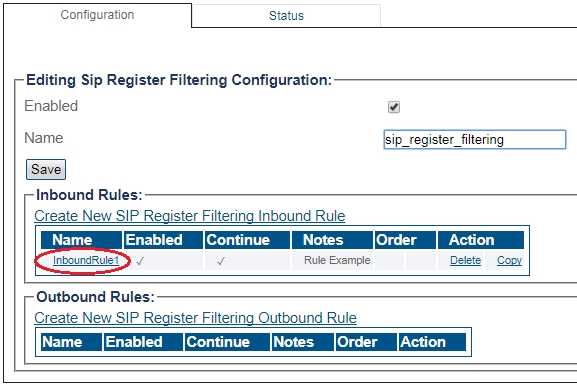

4- Verify that the Sip register filtering inbound rule was successfully created. or Sip register filtering outbound rule was successfully created. message appears
