Configuration Files for SIP Trunking Scenario

Introduction

ProSBC Configuration Files for SIP Trunking Scenario Tutorial provides you with a scenario-based approach to configuring of ProSBC systems, using sample configuration files. Complete general installation configuration steps, before you begin configuring your specific application.

Prerequisites

ProSBC devices must be installed as described in their respective installation guides.

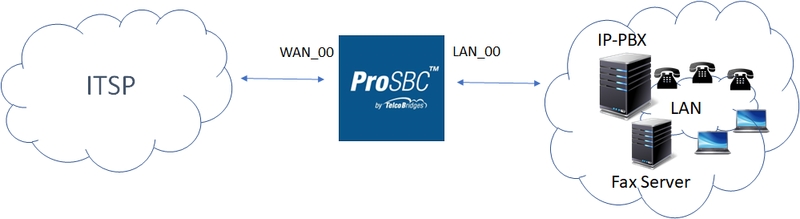

Typical SIP Trunking Sample without NAT

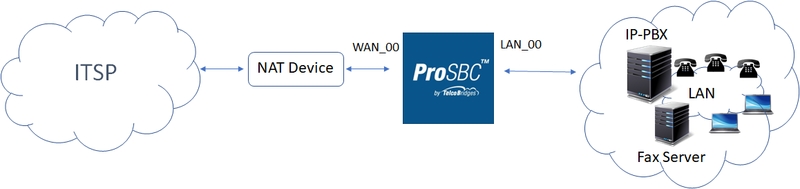

Typical SIP Trunking Sample with NAT

Modifying configuration file

You can download sample configuration for the SIP Trunking scenario from below;

SIP Trunking Sample Configuration without NAT SIP Trunking Sample Configuration with NAT

• Open the JSON file with a text editor

• Replace the following parameters in the file

  • [tbsbc] with the hostname that you gave on the installation stage

  • [WAN_00_IP] and [LAN_00_IP] with IP addresses

  • [WAN_00_Subnet] and [LAN_00_Subnet] with IP subnets

  • [WAN_00_Gateway] and [LAN_00_Gateway] with Gateway IP addresses

  • [WAN_00] and [LAN_00] with currently configured IP interfaces (for example voip0 and voip1)

  • [ITSP_Proxy_IP] with SIP Trunk Service Provider IP address (2 addresses in the file)

  • [Local_Proxy_IP] with Local Proxy IP address (2 addresses in the file)

• If you downloaded Remote Office/Workers Sample Configuration with NAT file please replace the following parameter too

  • [NAT_IP_Address] with your External IP (Public IP of the NAT device)

• Save the file

Uploading and activating the sample configuration

• You need to use an SFTP client to upload the configuration file to ProSBC

• After upload the file using the following commands from CLI

• For SIP Trunking Sample Configuration without NAT

 tbconfig -u root -p root -C /configurations SIP_Trunk_main_config.json name="main_config"
 tbconfig -u root -p root -U /systems/system_1/target_configuration="main_config"

• For SIP Trunking Sample Configuration with NAT

 tbconfig -u root -p root -C /configurations SIP_Trunk_main_config_nat.json name="main_config" -u root -p root
 tbconfig -u root -p root -U /systems/system_1/target_configuration="main_config"
