Configuring an IP Port Range
Last updated
Was this helpful?
Last updated
Was this helpful?
An IP port range is automatically created for an IP interface carrying the SIP service. The minimum and maximum values for the port range can be modified. By default, Toolpack uses ports from 20,000 to 40,000 for an IP interface.
1. Select IP Interfaces from the navigation panel:

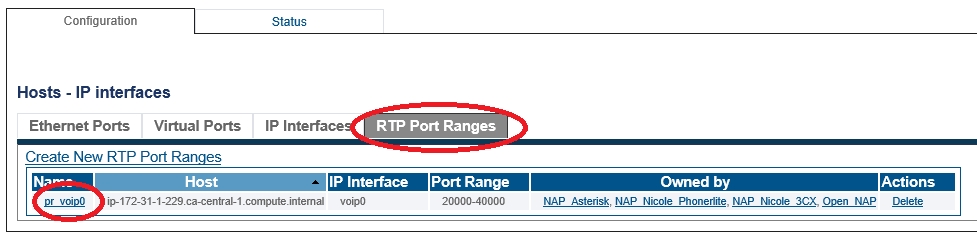

2. Click the RTP Port Ranges tab:
Select an IP Port Range from the RTP Port Ranges list.

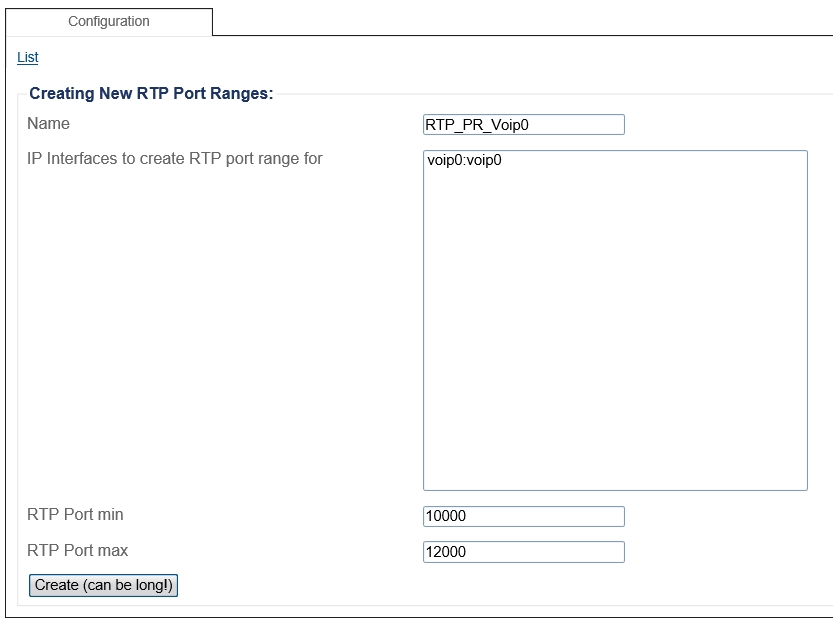

3. Configure the range of ports:
Enter a minimum port number for the port range
Enter a maximum port number for the port range
Click Create
