Steps to configure label routing for Group of DIDs to a single outbound NAPs
Steps to configure label routing for Group of DIDs to a single outbound NAPs :
This is the most basic use of Label Routing. The scenario is a group of the DIDs/Prefix will be sent the a single designated outbound NAP:
E.g.
DIDs/Prefix shall be sent to NAP_A
111
222
333
DIDs/Prefix shall be sent to NAP_B
444
555
666
DIDs/Prefix shall be sent to NAP_C
777
888
999
1- Create the digitmap file - dm.csv, simple make it as below:

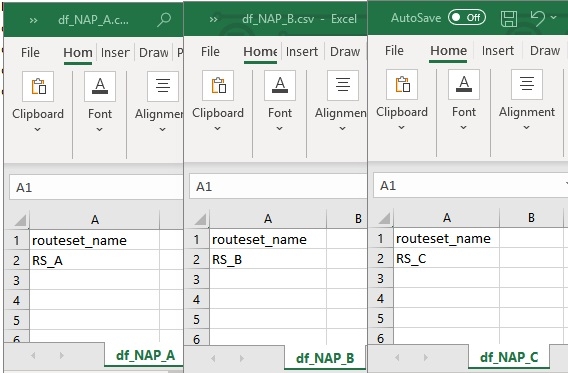

2- Create definition file for each NAP:

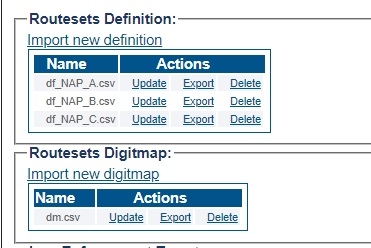

3- Import the dm.csv and the definition files via "File Db" menu

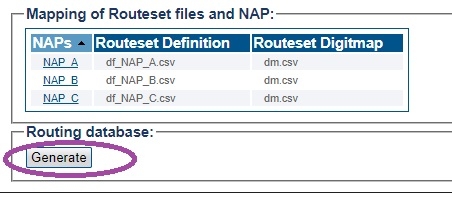

4- Associate NAP_A, NAP_B and NAP_C with the created dm.csv and the definition files, and generate routes

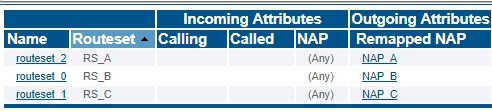

5- Verify the Routes

6- Activate the configuration
