Add NOA Columns in Routes

1- Click Routes in the navigation panel.

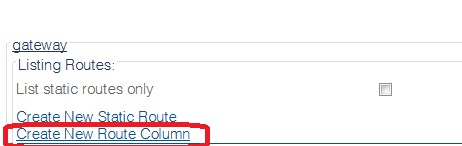

2- Click Create New Route Column on the static routes page.

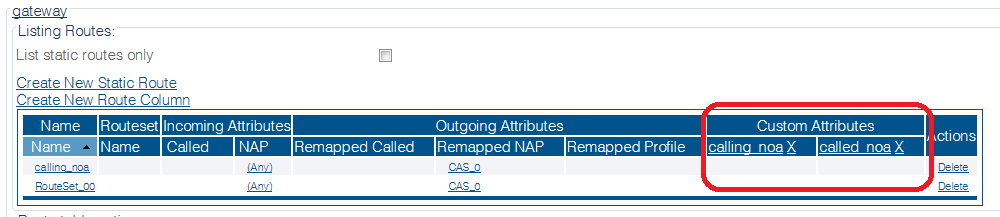

3- Create 2 New Route Columns: calling_noa and called_noa.

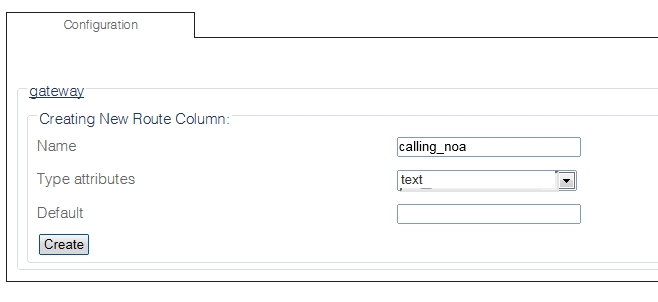

• Enter a name for the column

• Type Attributes: text

• Default: leave it blank or give a value from the valid values of NOA (see below).

Valid values for NOA

• unknown_number

• international_number

• national_number

• subscriber_number

• network_specific

• network_routing_national_format

• network_routing_international_format

• abbreviated_number

• subscriber_number_operator_requested

• national_number_operator_requeste

• international_number_operator_requested

• no_number_present_operator_requested

• no_number_present_cut_through_call_to_carrier

• test_line_test_code

• non_unique_subscriber_number

• non_unique_national_number

• non_unique_international_number

• call_950_number

• national_number_with_transit_network_selection

• international_number_with_transit_network_selection
