Adding Transcoding Unit

To add a transcoding unit:

1- Click Hardware Units in the navigation panel

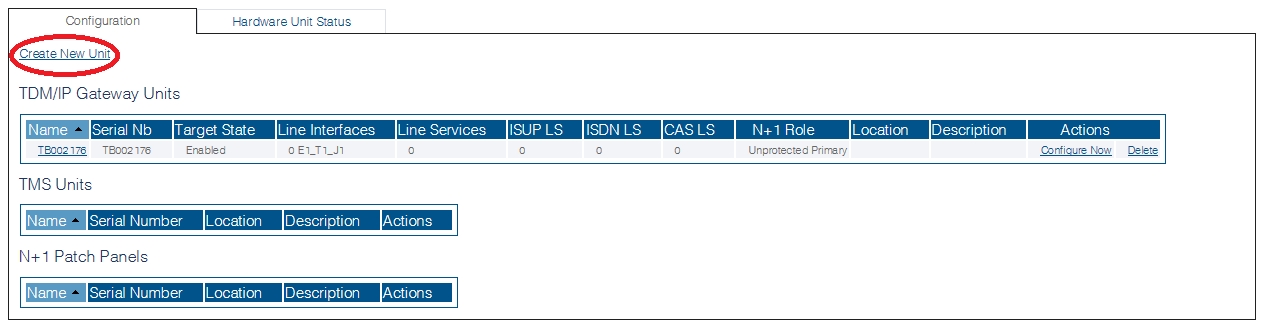

2- Click Create New Unit, to add a new hardware device

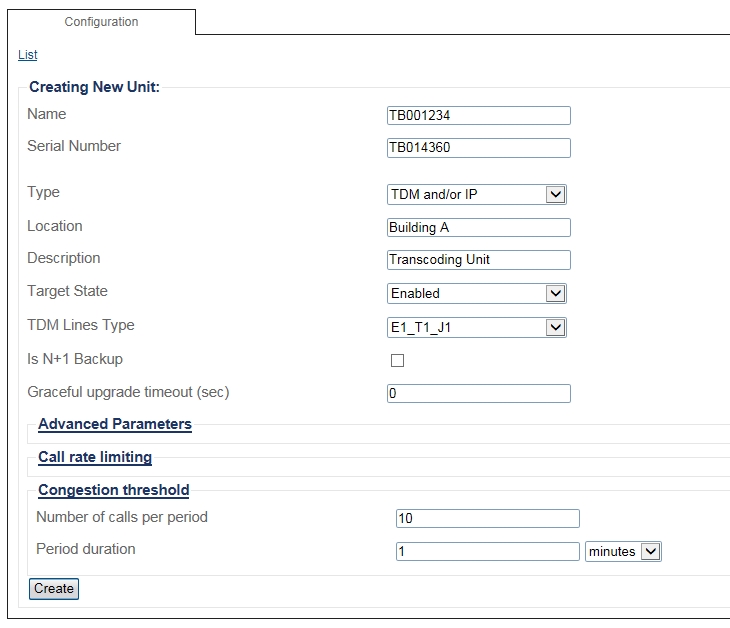

3- Enter information for the following parameters:

• Enter a name for the hardware device

• Enter the serial number of the new hardware device (filling in the Serial Number field will cause auto-completion of the field to occur).

• Select TDM and/or IP from the Type field.

• Enter the location in which the hardware device is installed.

• Enter a meaningful description about the use or purpose of the hardware device.

• Select Enabled from the Target State field.

• Select the type of TDM lines that the hardware device will support.

• Leave the Is N+1 Backup field empty.

• Provide the amount of time in seconds, that the system will wait for calls to complete before shutting down for an upgrade.

• Click Create

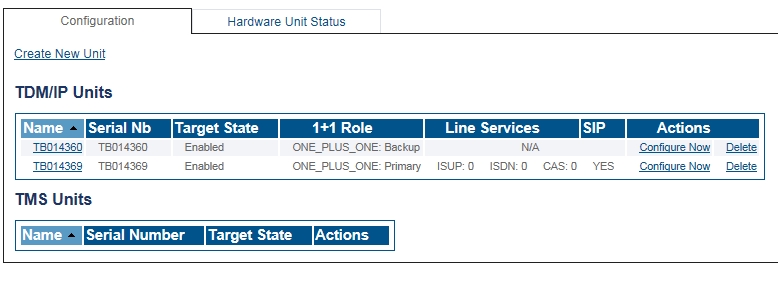

4- Verify that the Unit was successfully created message appears, and that the newly added hardware device appears in the Hardware List.

List of Parameters

• Name

• Serial Number

• Type

• Location

• Description

• Target State

• TDM Lines Type

• Is N+1 Backup

• Graceful Upgrade Timeout
