Configure Fax NSE

To enable NSE:

1. Select Profiles from the navigation menu.

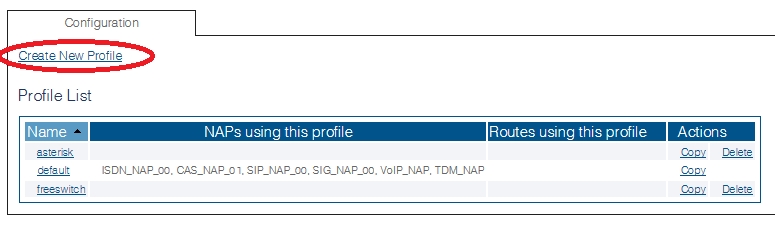

2. Click Create New Profile

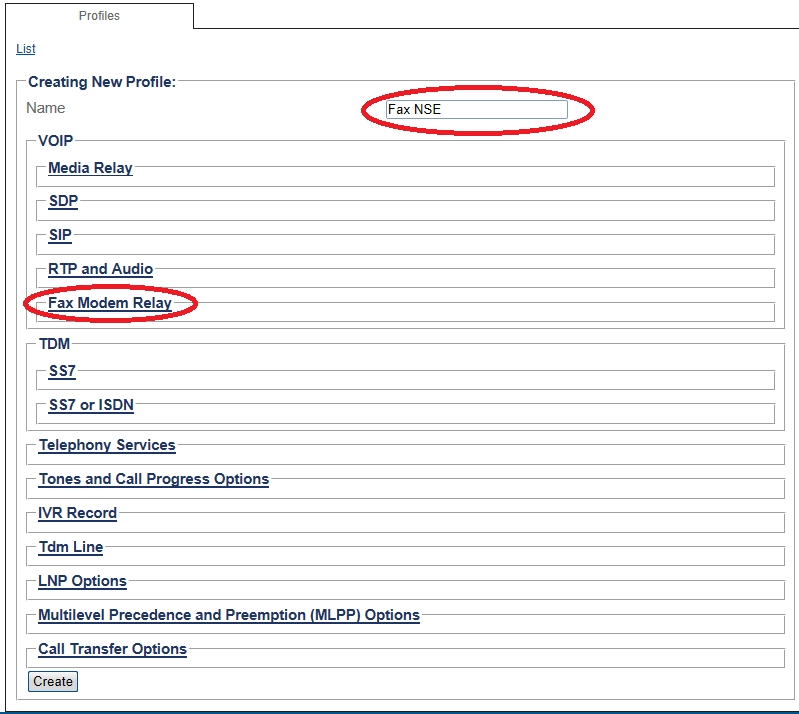

3. Enter a name for the Fax Profile.

  • Click Fax/Modem Relay to expand the view.

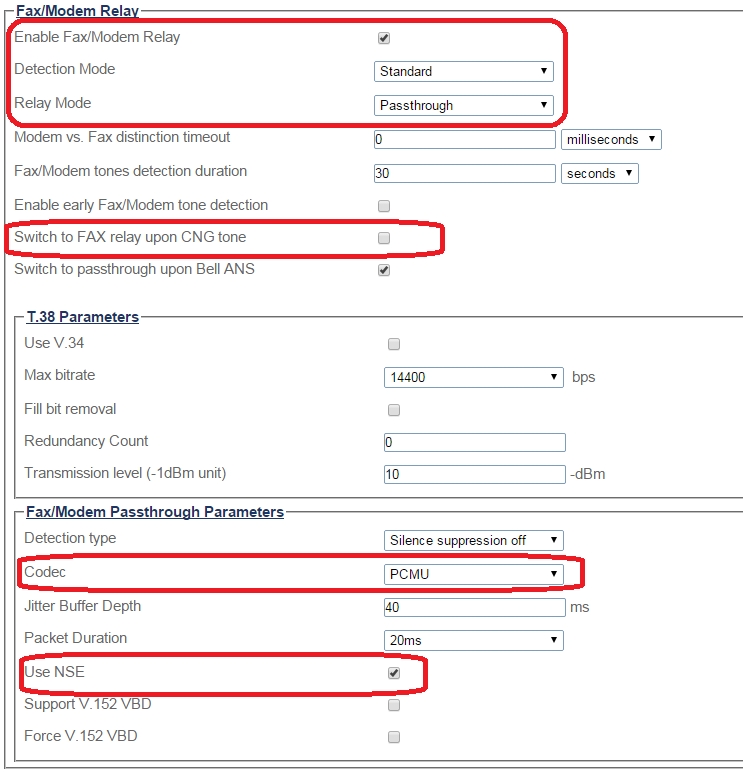

4. Configure the settings:

  • Set Enable Fax/Modem Relay to enabled.

  • Set Detection Mode to Standard.

  • Set Relay Mode to Passthrough.

  • Select a codec. For example silence suppression

  • Set Use NSE to enabled

5. Verify that the Profile was successfully created message is displayed.
