Modifying Tones and Call Progress Options

To configure Tones and Call Progress Options, do the following:

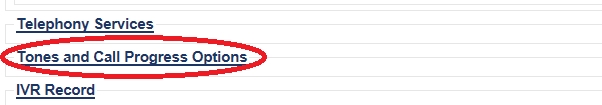

1- Click Tones and Call Progress Options in the Editing Profile window, to display the customizable options.

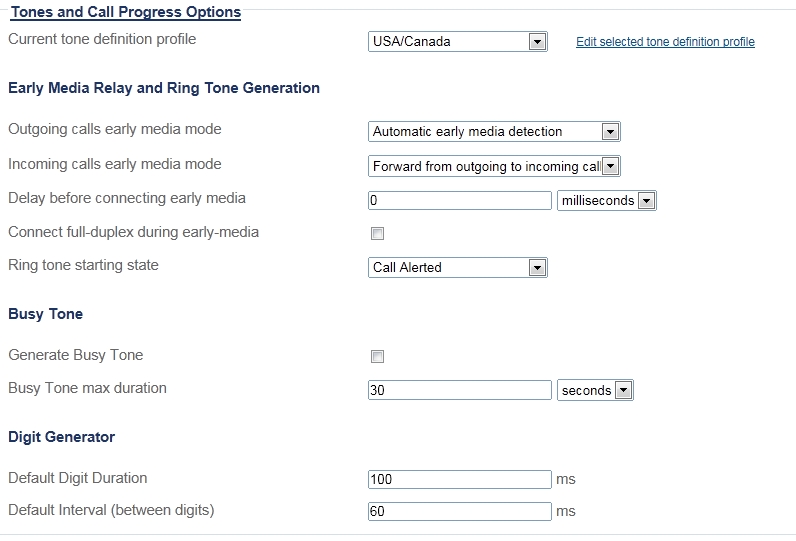

2- Modify settings as required.

• Click Save

Northbound Interface

Path

/configurations/@[configuration_name]/profiles/@[profile_name]

Parameters (text)

/configurations/@[configuration_name]/profiles/@[profile_name]
name                            = "@[profile_name]"

/configurations/@[configuration_name]/profiles/@[profile_name]/tones_and_call_progress_options
busy_tone_max_duration                     = "30 seconds"
default_digit_duration                     = 100
default_interval_between_digits            = 60
generate_busy_tone                         = false
tone_definition_profile                    = "USA-Canada"

<pre>
{
  "tones_and_call_progress_options" : {
    "busy_tone_max_duration" : "30 seconds",
    "default_digit_duration" : 100,
    "default_interval_between_digits" : 60,
    "early_media_relay_and_ring_tone_generation" : {
      "connect_full_duplex_during_early_media" : false,
      "delay_before_connecting_early_media" : "0 millisecond",
      "incoming_calls_early_media_mode" : "Forward from outgoing to incoming call",
      "outgoing_calls_early_media_mode" : "Automatic early media detection",
      "ring_tone_starting_state" : "Call Alerted"
    },
    "generate_busy_tone" : false,
    "tone_definition_profile" : "USA-Canada"
  }
}

List of Parameters

Early Media Relay and Ring Tone Generation

• Early Media Relay and Ring Tone Generation: Outgoing Calls Early Media Mode

• Early Media Relay and Ring Tone Generation: Incoming Calls Early Media Mode

• Early Media Relay and Ring Tone Generation: Delay before connecting early media

• Early Media Relay and Ring Tone Generation: Connect full-duplex during early-media

• Early Media Relay and Ring Tone Generation: Ring Tone Stating State

Busy Tone Options

• Busy Tone Generation: Generate Busy Tone

• Busy Tone Options: Busy Tone Maximum Duration

Digit Generation Options

• Busy Tone Options: Default Digit Duration

• Busy Tone Options: Default Interval (between digits)
